ERGODYNAMIC

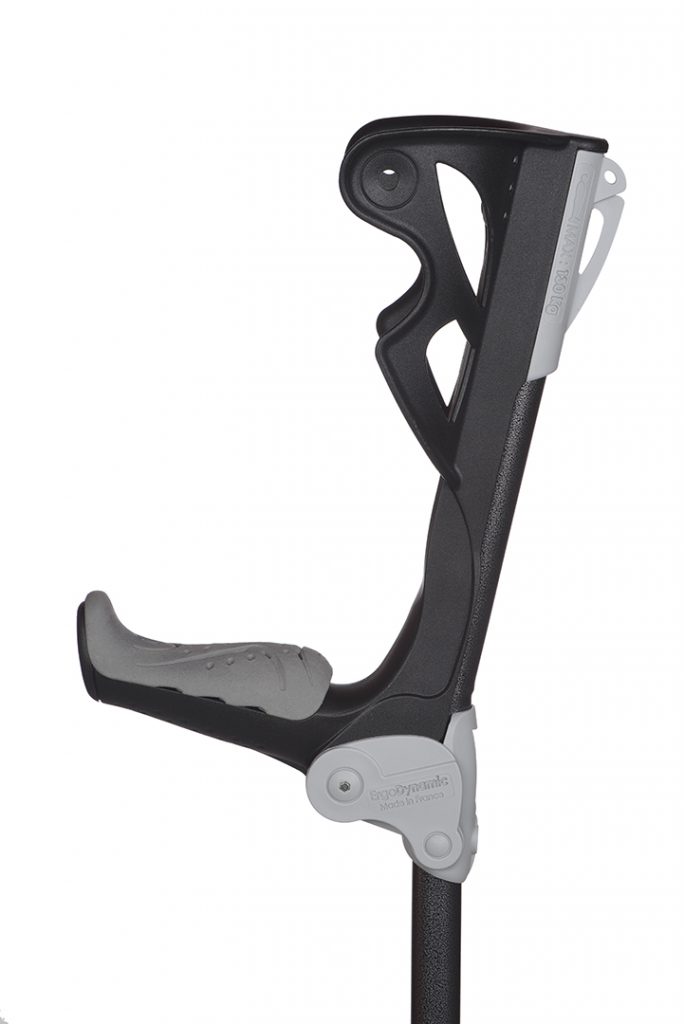

Ergodynamic is an FDI innovation with a shock absorber incorporated into the forearm crutch. It absorbs shock at impact and the resulting rebound effect prevents injuries in the joints (wrist elbow and shoulder).

Available in 3 sizes to fit all morphology and features.

ERGODYNAMIC

To whom is it intended ?

Whether you are looking for a sharp comfort answer or a day-to-day walking aid on long term, the Ergodynamic is suitable for all, without distinction of body shape or duration. Relief on joints is the key word.

Features:

• A unique incorporated shock absorber system (patented): absorbs shocks on impact and prevents joint trauma (wrist, elbow, shoulder)
• Silent operation
• Extra light and malleable: a featherweight 612 grams
• Exists in 3 shock absorber sizes to adapt to all body shapes

Size S: Recommended for users weighing up to 60 kilos

Size M: Recommended for users weighing between 60 and 75 kilos

Size L: Recommended for users weighing over 75 kilos
• Equipped with a replaceable non-slip double layered PREMIUM soft handle and replaceable forearm protection

Technical data

ERGODYNAMIC

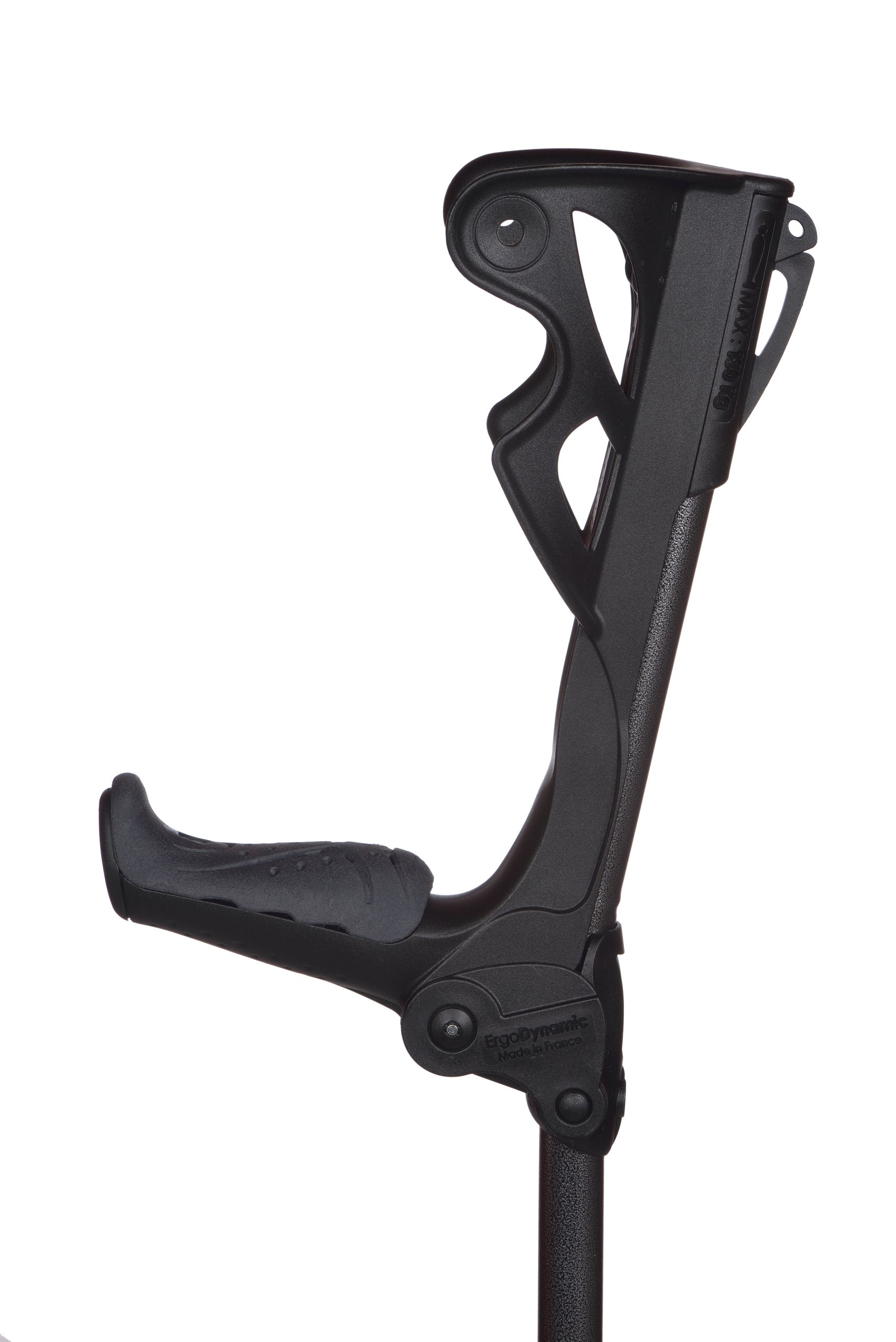

Color

Color"
Color"
Color"

Unitary weight

between 612 g and 620 g

Maximum user weight

130 kg

Lean height

between 735 and 985 m

Lean height adjustment

12 positions, 25mm apart

Tube

High-quality aluminium tube

Distance between hand-grip and cuff

245 mm

Handle

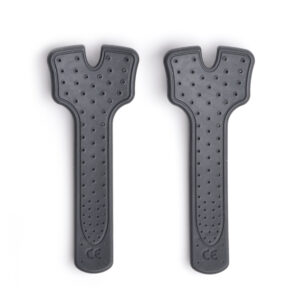

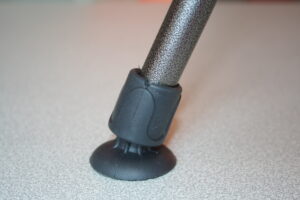

Equipped with a shock absorber mechanism Maximum shock absorber travel: 32 mm Equipped with replaceable, anti-slip double-thickness PREMIUM plastic grip Forearm protection Replaceable shock-absorbing anti-slip base

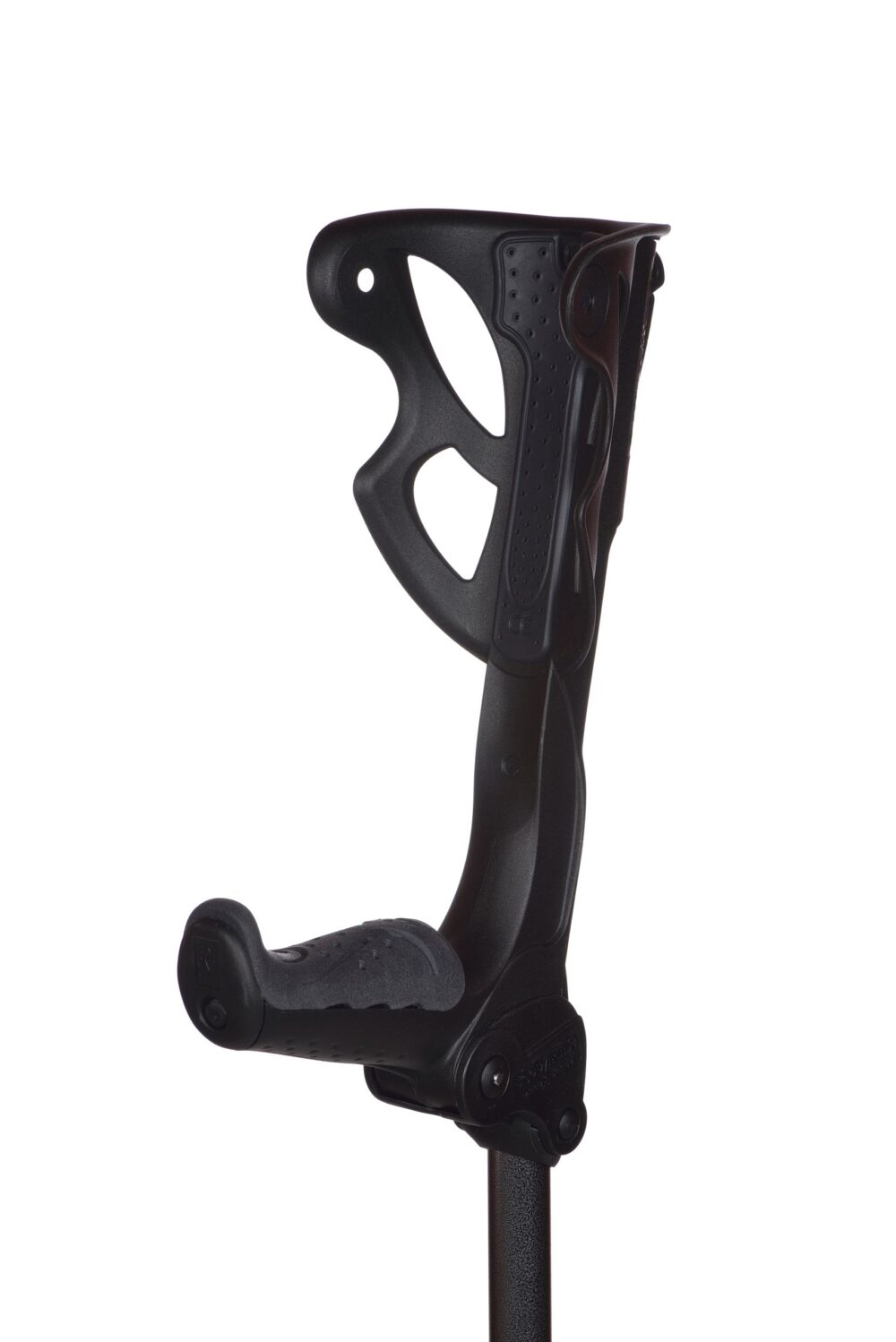

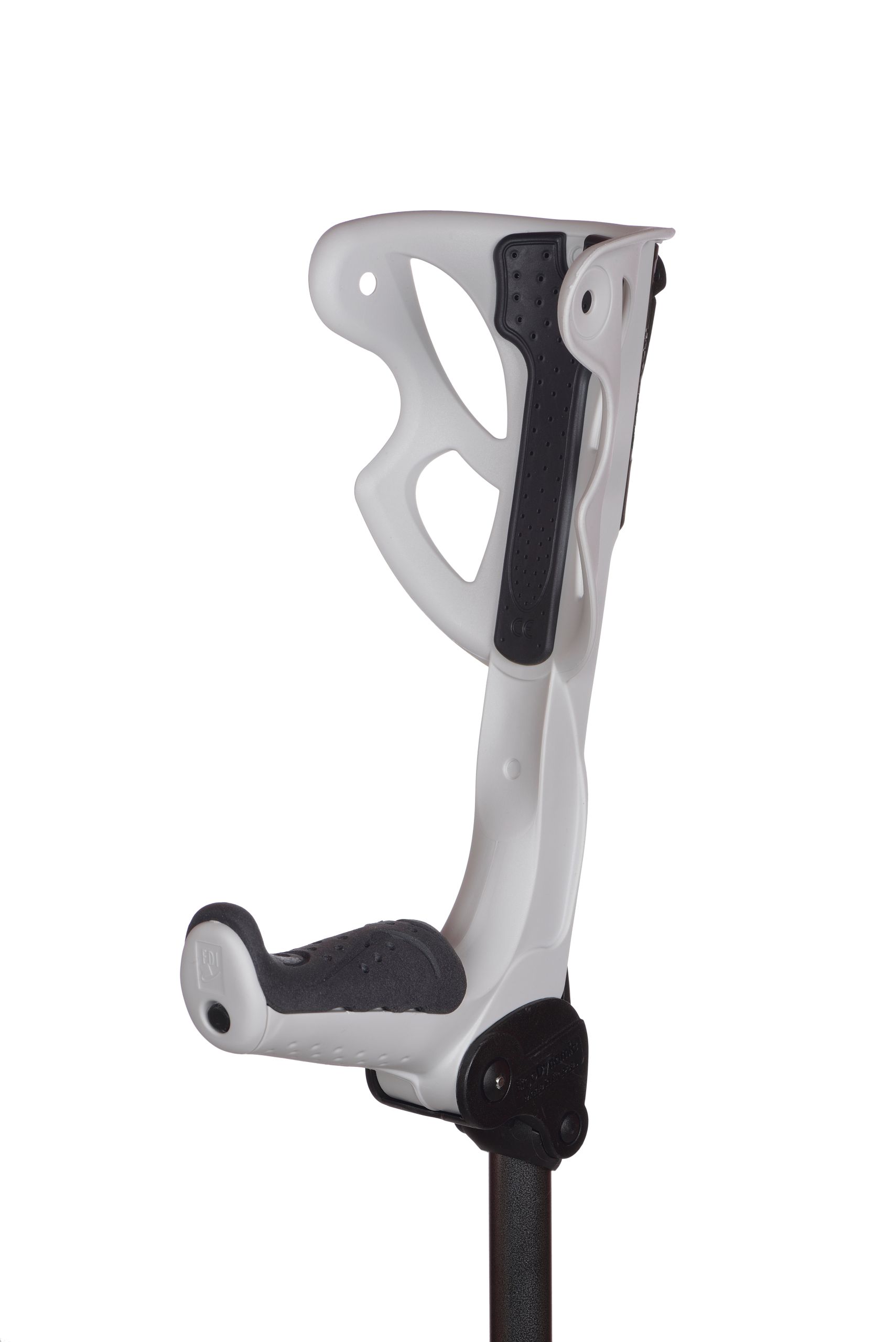

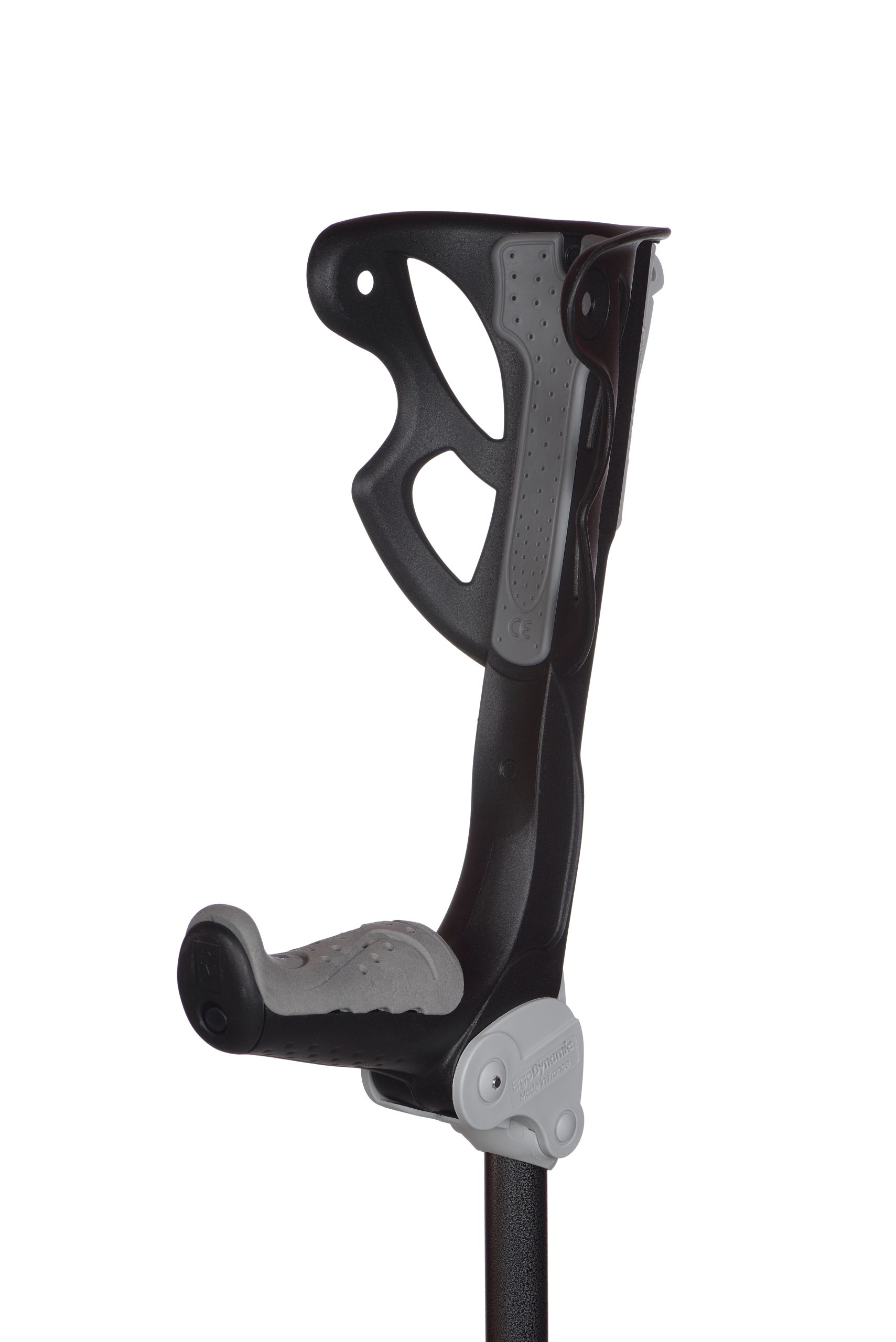

Handle"
Handle
Handle
Handle

Several choices of colours available for our distribution partners. Customisation possible* *

**Customisation subject to minimum orders per colour and per model



Instructions for use:

We can provide several types of instruction manuals from the simplest to the most sophisticated. Prices and models on request or possible customisation by quote.
Prices and models available on demand, customization available on quotation.

Quality

OUR APPROACH

We submit our products to the CERAH (Centre d’Etudes et de Recherche sur l’Appareillage des Handicapés), accredited COFRAC (Comité Français d’Accréditation) to undergo a complete set of tests to guarantee the quality and safety of our products .

Following these experiments, none of the components used exhibit any permanent deformation or breakage.

Each model is the subject of a patent lodged at the INPI and are in full compliance with EN ISO 11334-1.

01. FATIGUE TEST

A loading force of 130 kg corresponding to the max user weight is applied one million times via a dummy arm to the fully-extended crutch.

02. LOW TEMPERATURE FALLING TEST

FDI elbow crutch is placed for 24 hours at -25 °C in the aim of weakening the structure.

Within 30 seconds of being removed from the cold environment, the elbow crutch undergoes a series of falls which must not reveal any cracks or fractures.

03. STATIC LOADING TEST

Our elbow crutches must withstand 130 kilos of static load without weakening. To be validated, a loading force is applied via a dummy arm to the fully extended crutch and methodically reproduces a rise in weight to 1300 newtons for 10 seconds.

04. SEPERATION TEST

A pulling force of 500 newtons is applied for 10 seconds time to the upper and lower parts of the crutch.

None of its components must disassociate.
