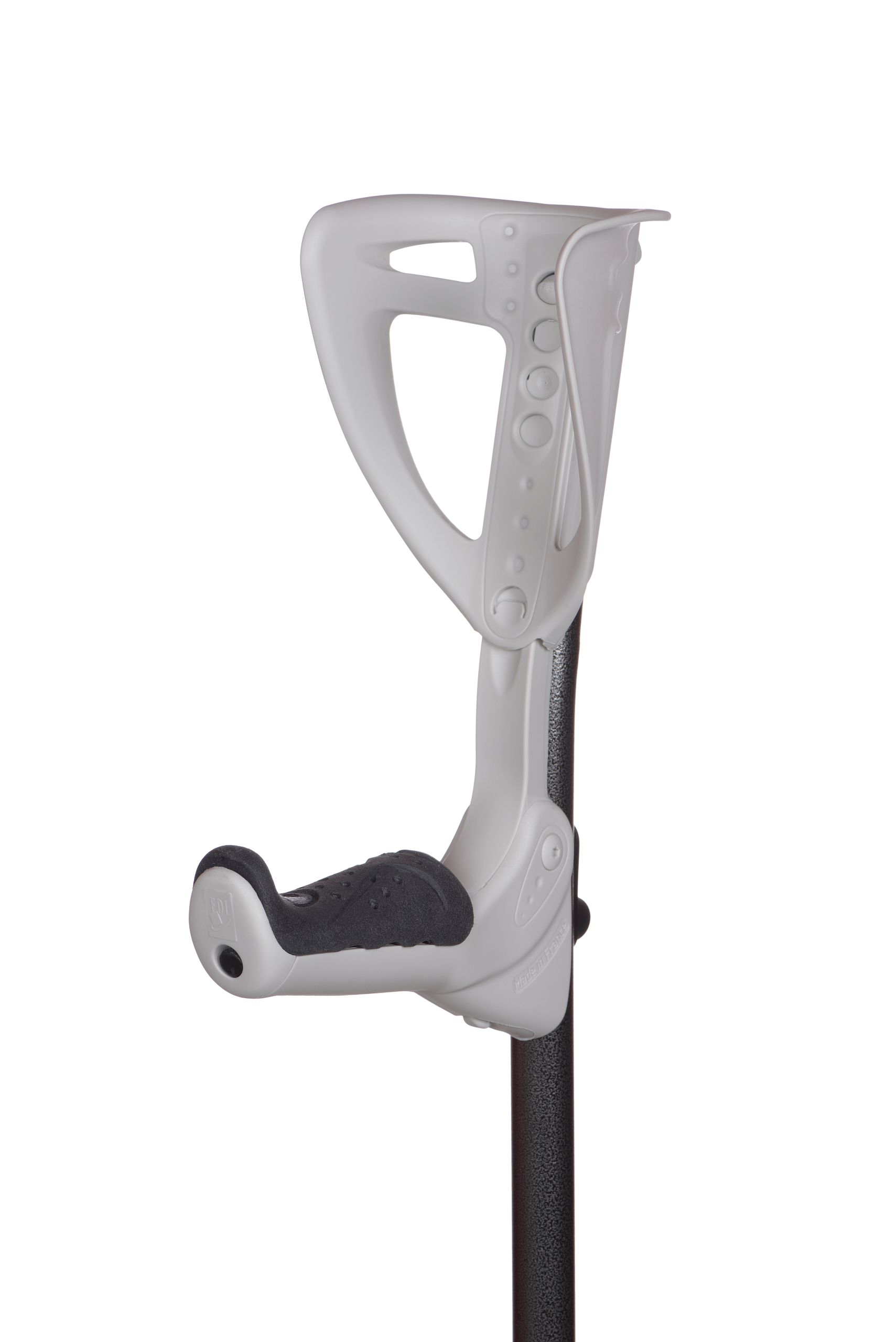

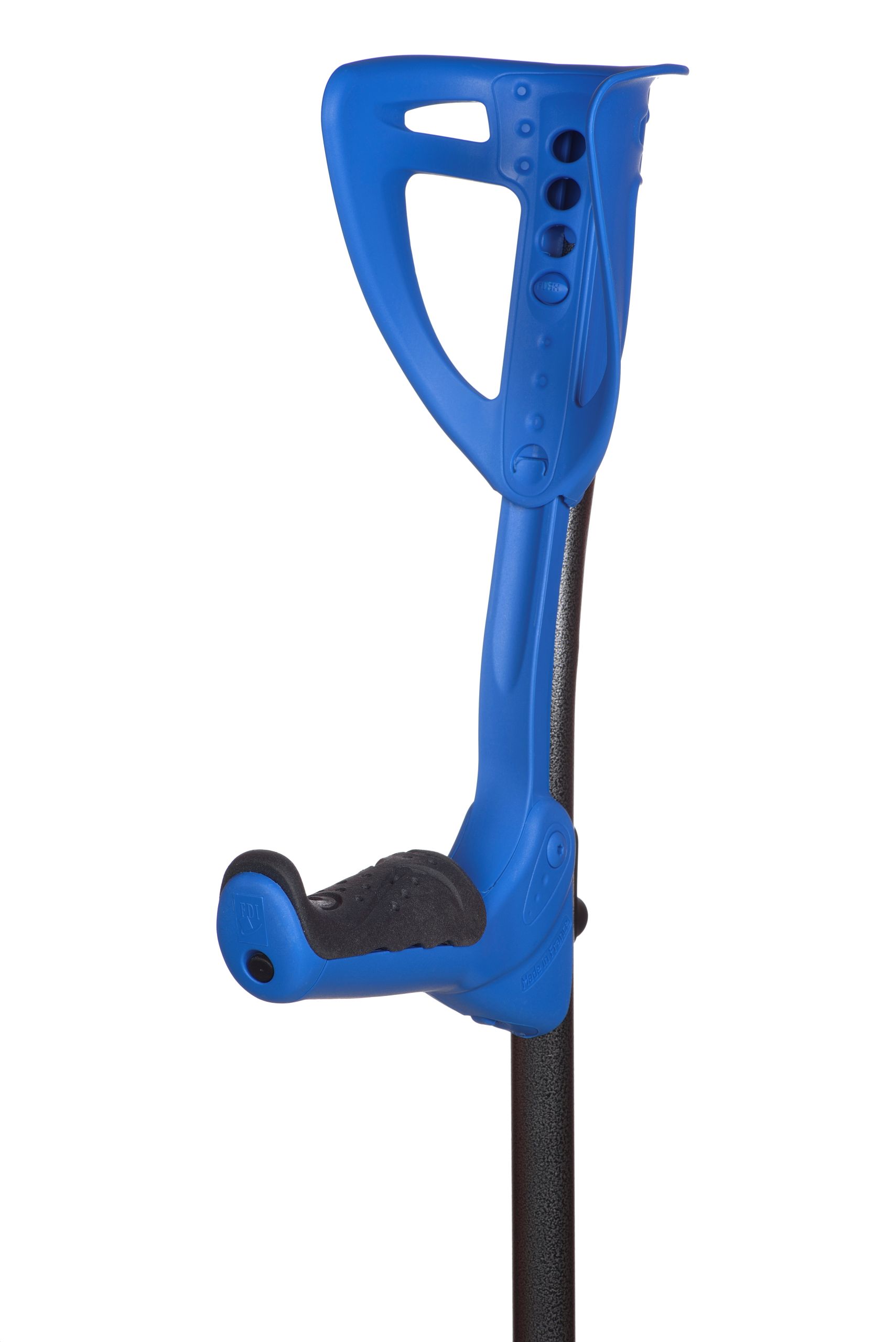

ERGOTECH

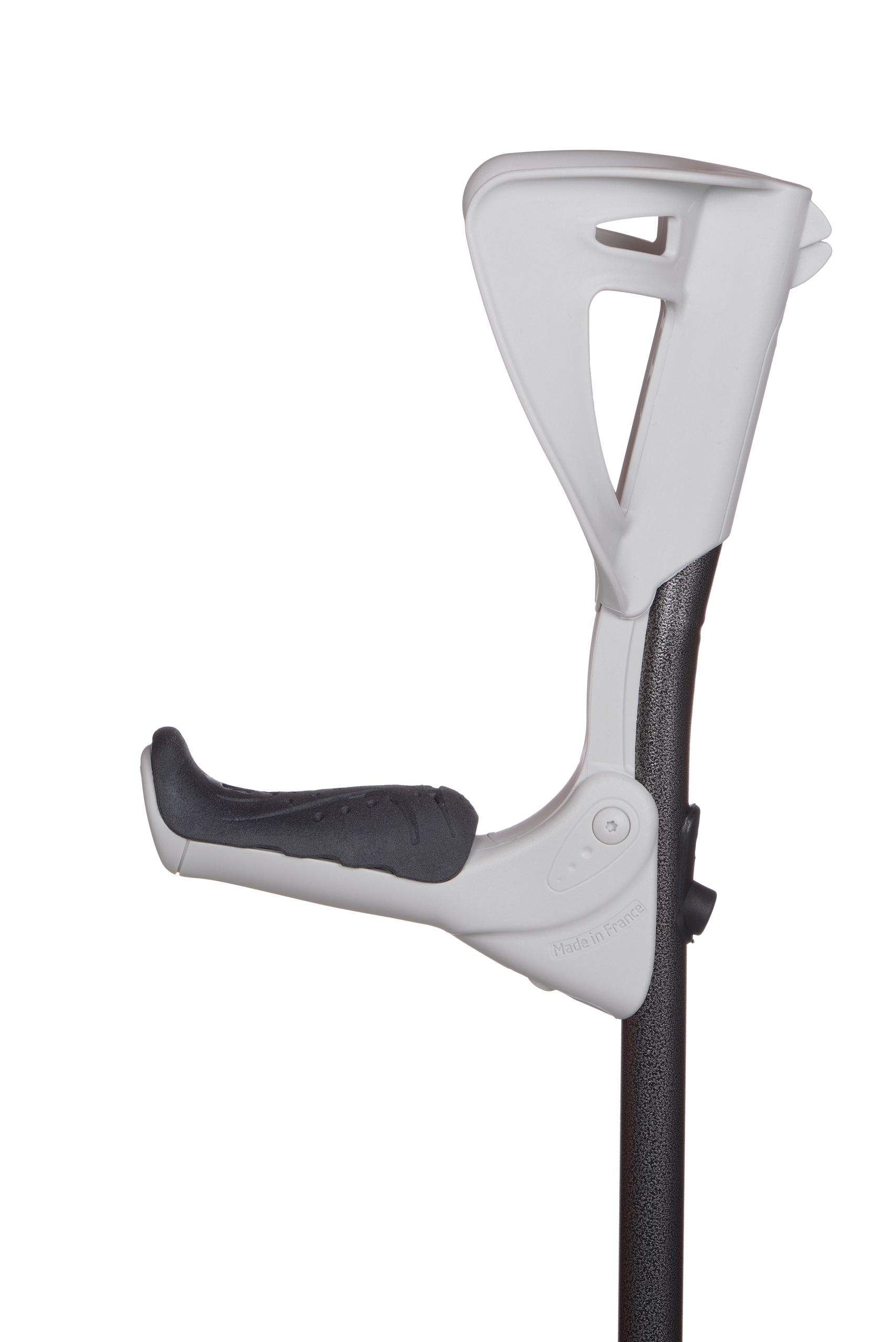

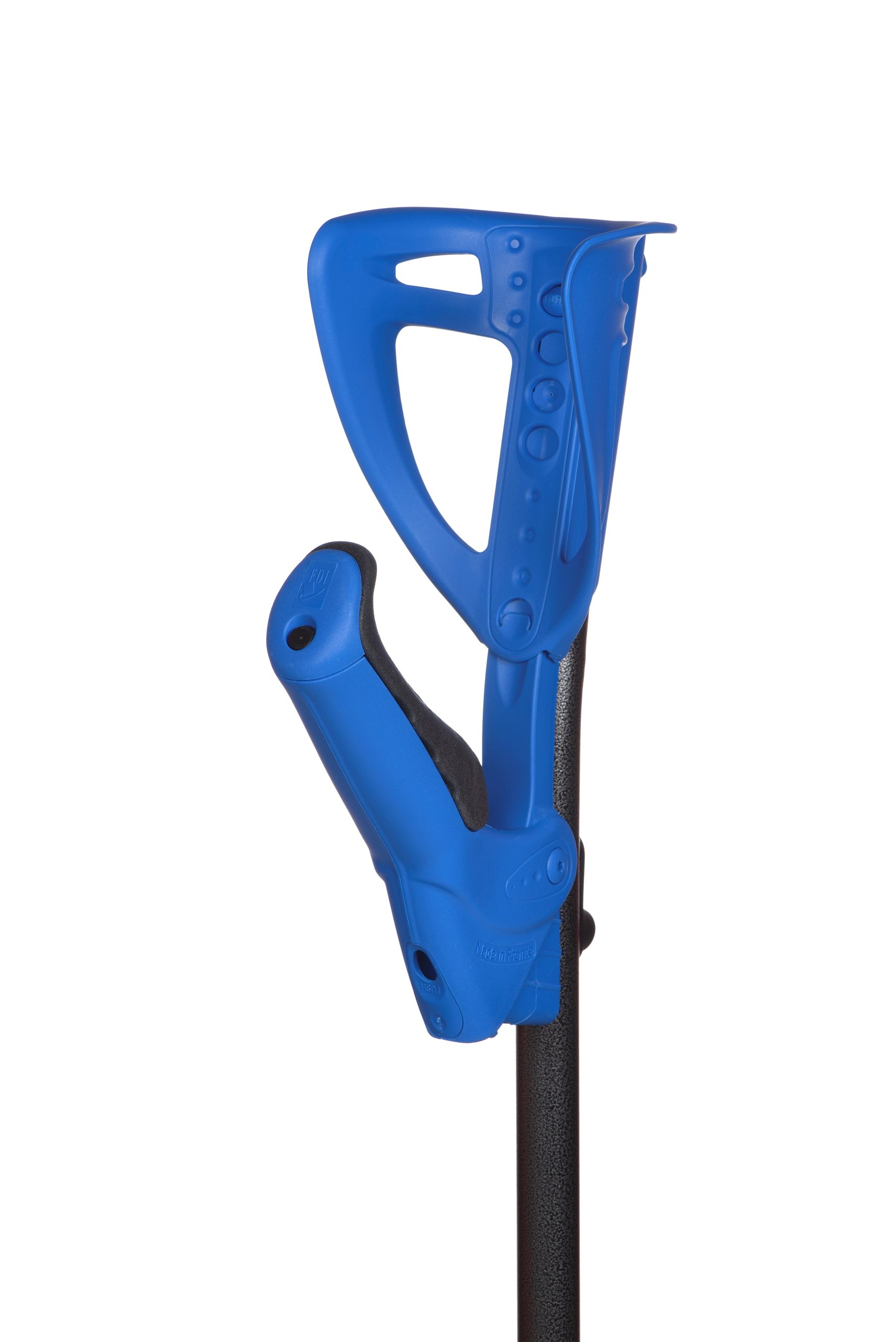

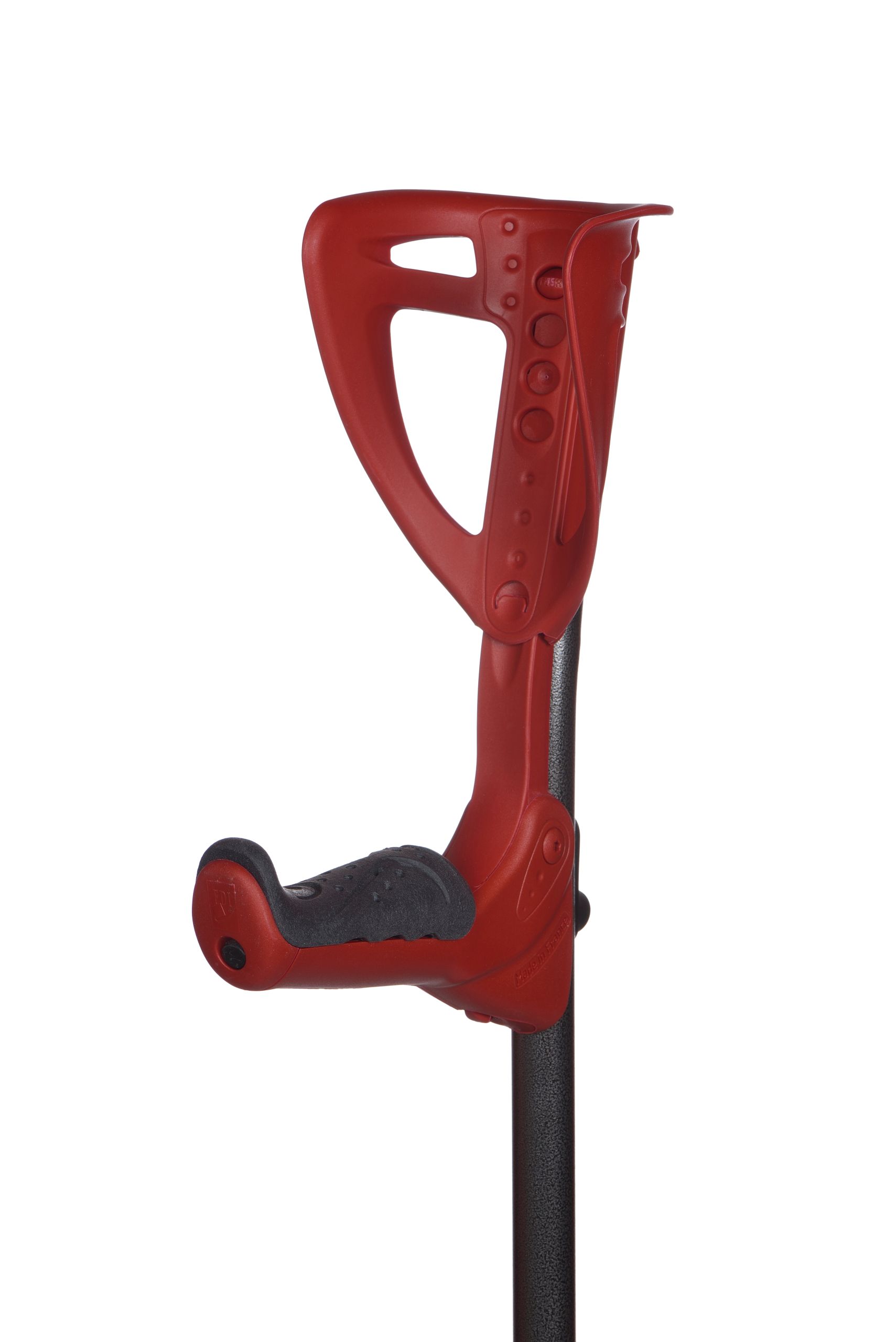

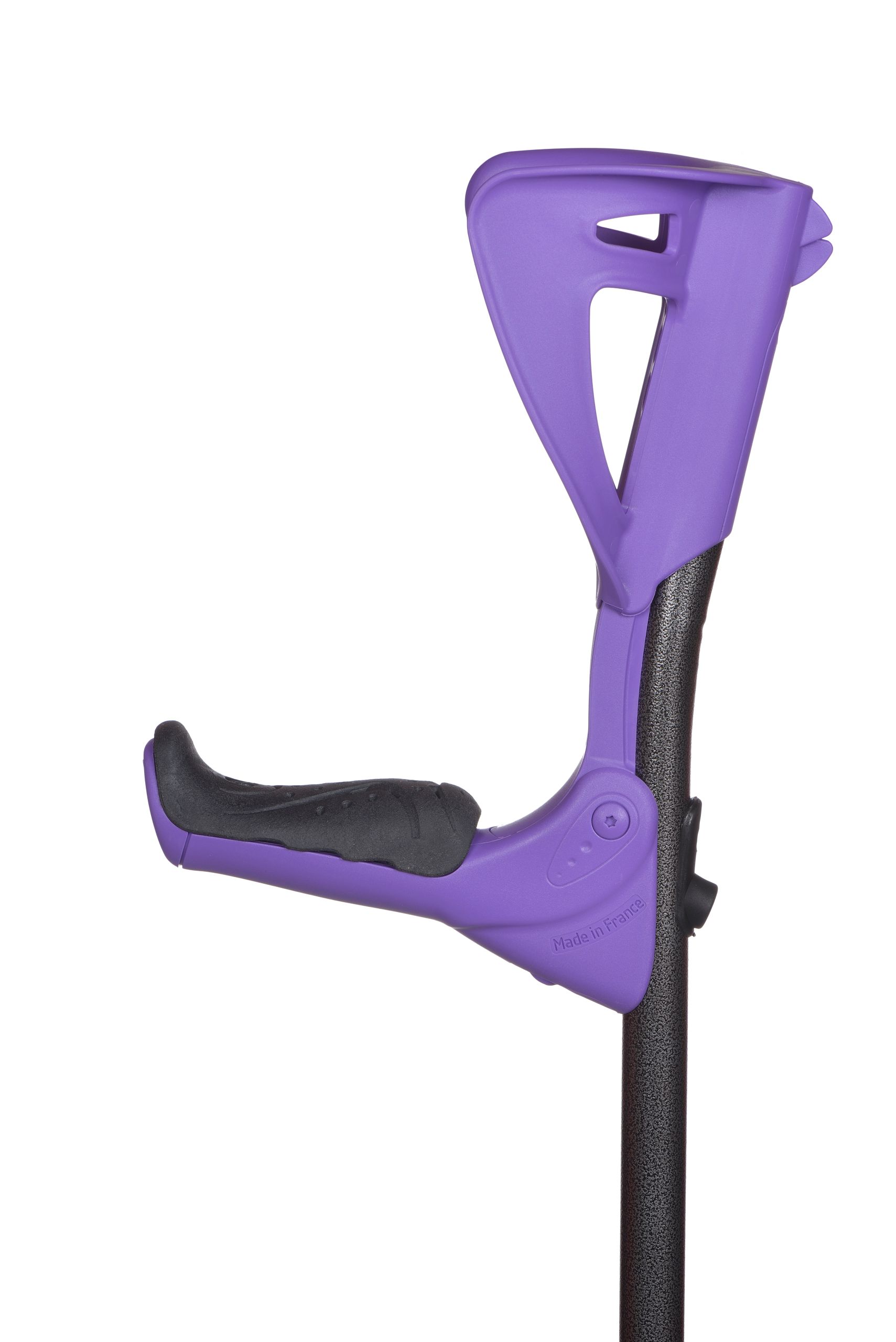

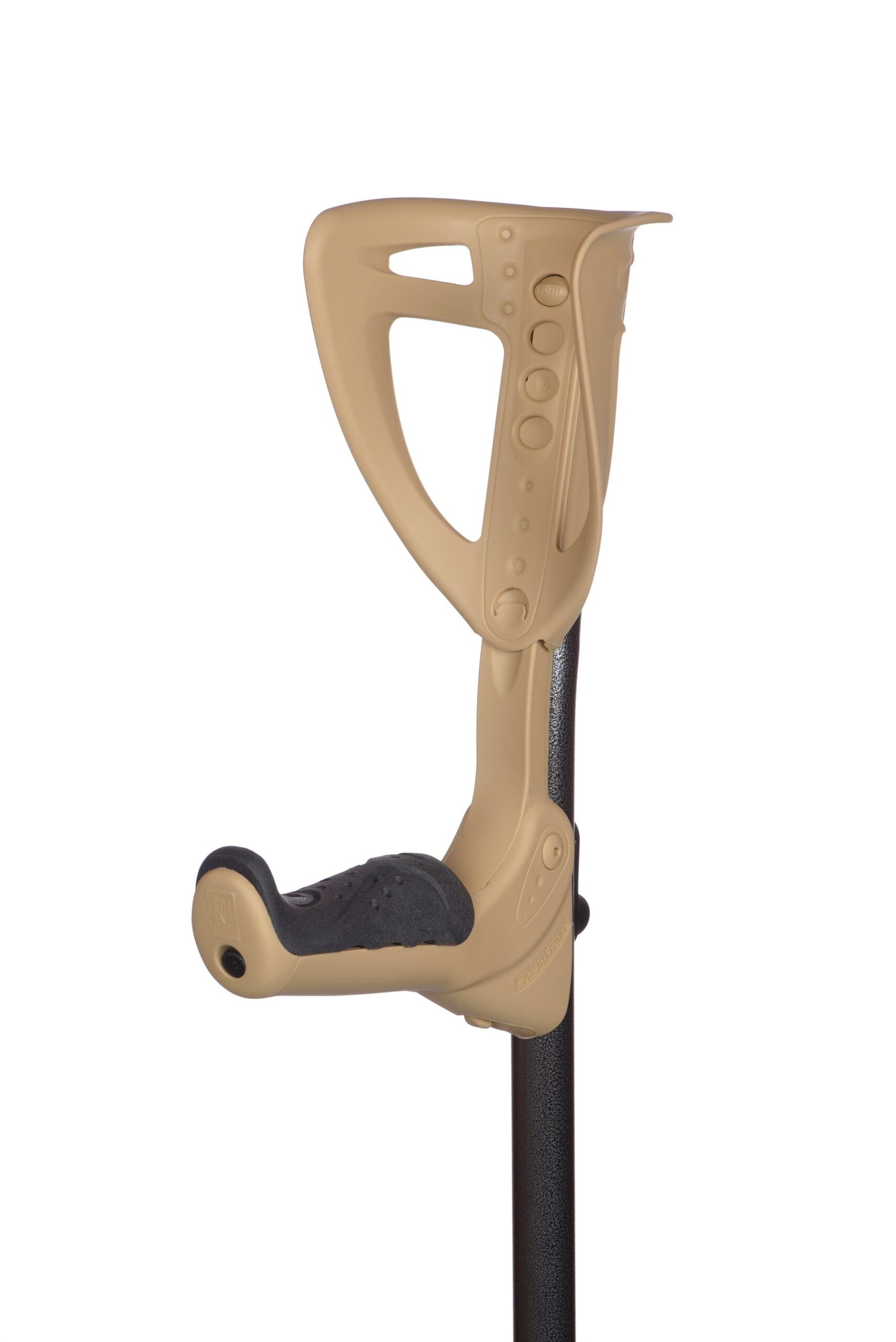

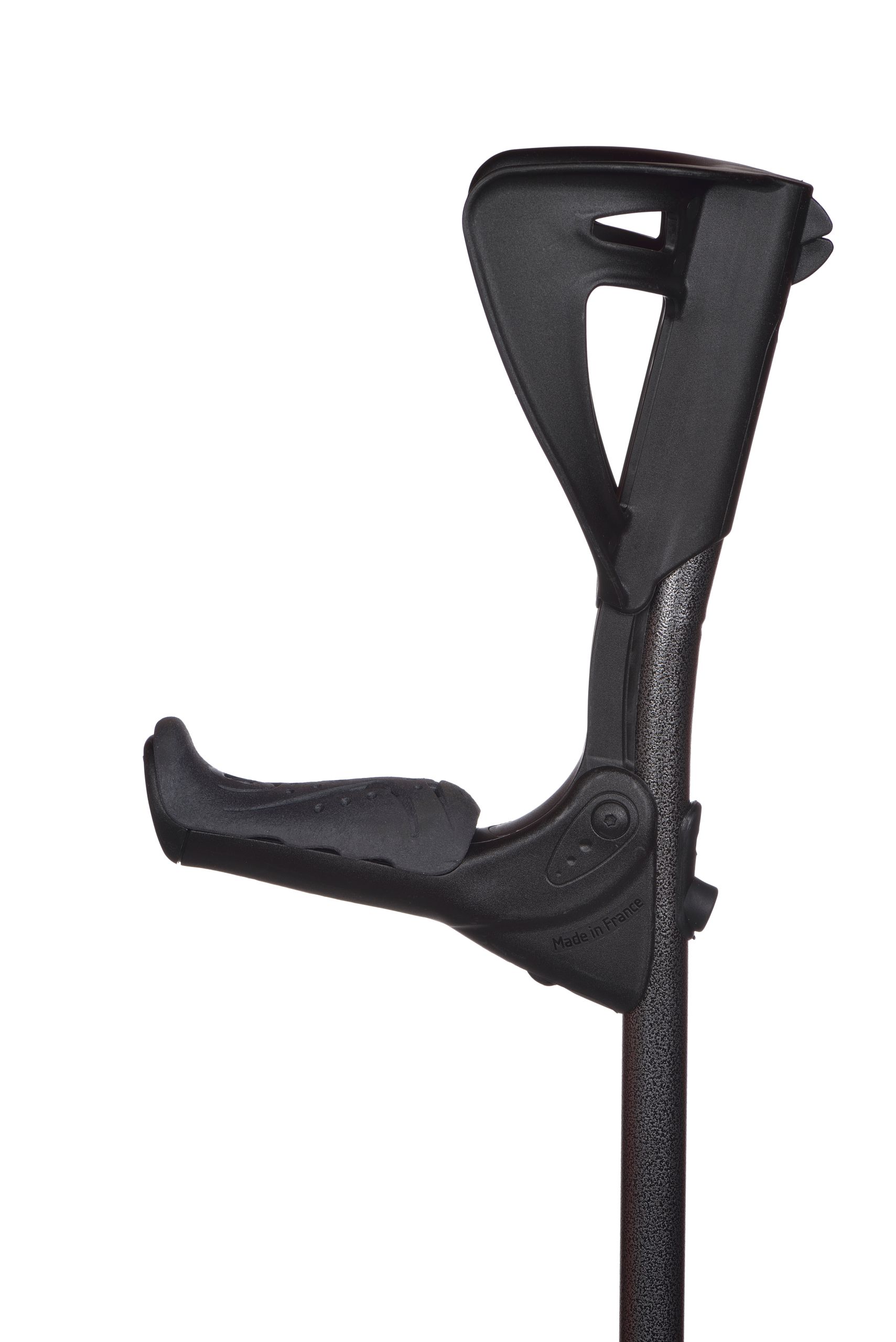

Ergotech fits first and foremost to the user, and not the other way round.

With an adjustable cuff height, it adapts to the user’s forearm morphology. Moreover, it adapts to the space given with its completely foldable handle.

ERGOTECH

To whom is it intended ?

The medium to long-term user needing to get around a lot and looking for a forearm crutch that is as discreet as possible for himself, first of all, and also for others.

Features:

• Ergonomic forearm crutches with height-adjustable cuff according to forearm morphology. (4 positions: 220 to 267 mm)

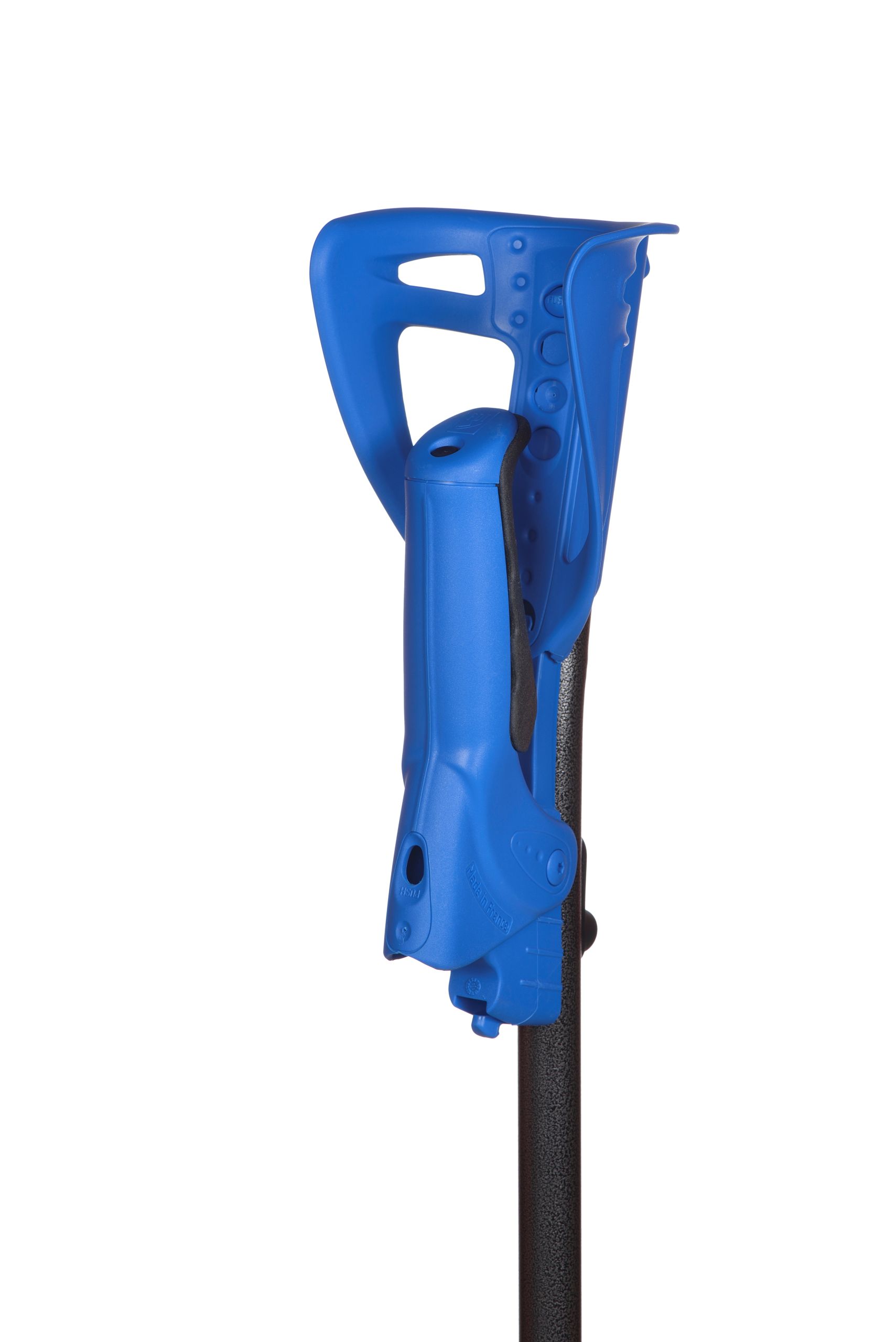

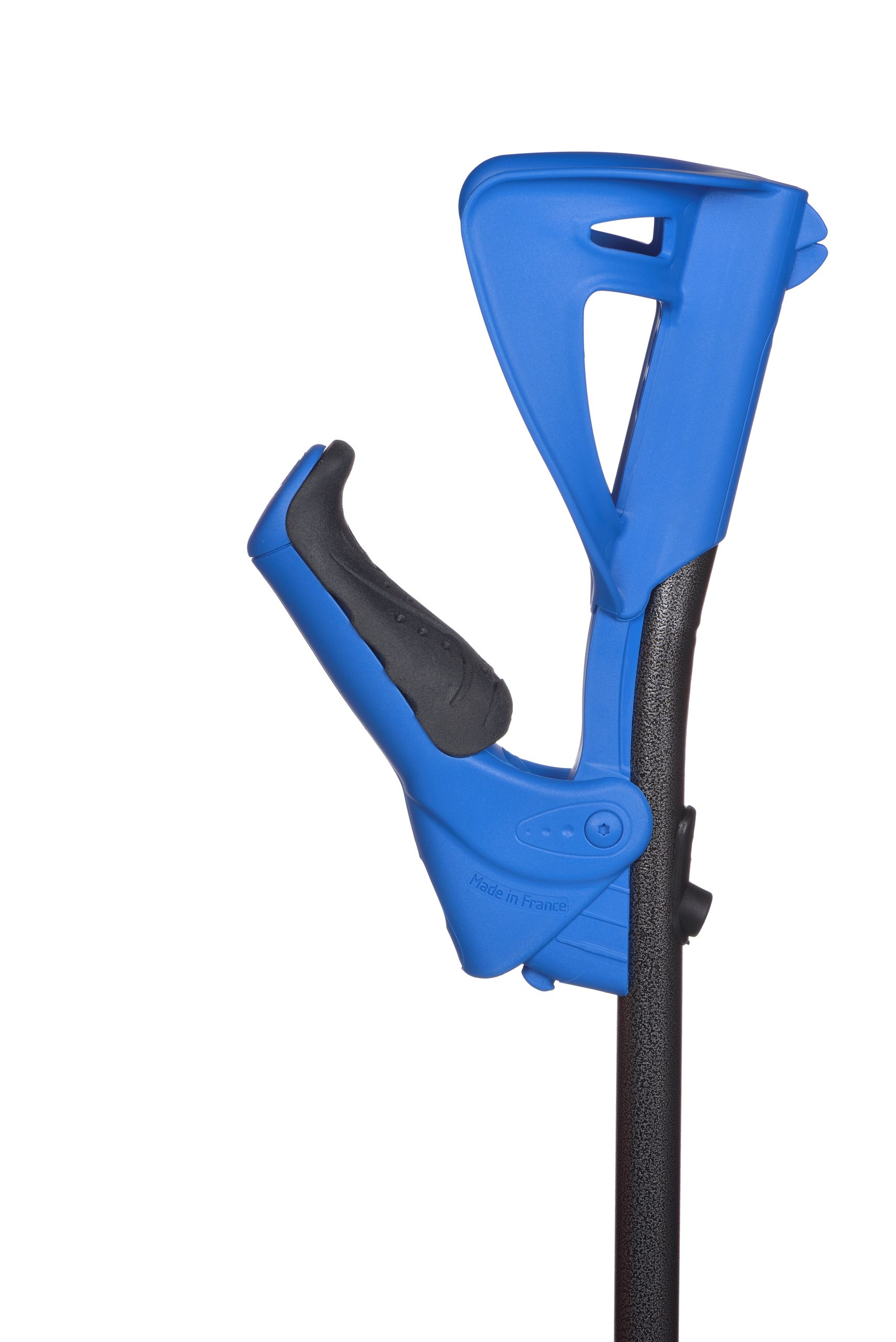

• Foldable handle
• Extra light and malleable: a featherweight 530 grams

Données techniques

ergotech

Coloris

Couleur"
Couleur"
Couleur"
Couleur"
Couleur"
Couleur"

Poids par unité

530 g

Poids max. d'utilisateur

130 kg

Hauteur d'appui

from 705 mm to 990 mm

Ajustement hauteur d'appui

14 positions, 25mm apart

Tube

High-quality aluminium tube

Distance entre appui et manchette

from 220 mm to 267 mm

Poignée

Cuff adjustment: 4 heights possible, from 200 to 275 mm Equipped with replaceable non-slip double layered PREMIUM soft handle Replaceable, shock-absorbing, anti-slip base

Poignée"
Poignée
Poignée
Poignée
Poignée
Poignée
Poignée

Plusieurs choix possibles pour nos partenaires distributeurs. Personnalisation possible*

*Personnalisation soumise à des minimums de commande par couleur et pas modèle.



Notice d'utilisation

Obligatoire pour tous les pays, nous vous proposons plusieurs types de notices d'uilisation, de la plus simple à la plus sophistiquée, intégrées lors de la fabrication de la canne et sa préparation à l'expédition.
Tarifs et modèles sur demande ou personnalisation possible sur devis.

Qualité

OUR APPROACH

We submit our products to the CERAH (Centre d’Etudes et de Recherche sur l’Appareillage des Handicapés), accredited COFRAC (Comité Français d’Accréditation) to undergo a complete set of tests to guarantee the quality and safety of our products .

Following these experiments, none of the components used exhibit any permanent deformation or breakage.

Each model is the subject of a patent lodged at the INPI and are in full compliance with EN ISO 11334-1.

01. FATIGUE TEST

A loading force of 130 kg corresponding to the max user weight is applied one million times via a dummy arm to the fully-extended crutch.

02. LOW TEMPERATURE FALLING TEST

FDI elbow crutch is placed for 24 hours at -25 °C in the aim of weakening the structure.

Within 30 seconds of being removed from the cold environment, the elbow crutch undergoes a series of falls which must not reveal any cracks or fractures.

03. STATIC LOADING TEST

Our elbow crutches must withstand 130 kg of static load without weakening. To be validated, a loading force is applied via a dummy arm to the fully extended crutch and methodically reproduces a rise in weight to 1300 newtons for 10 seconds.

04. SEPERATION TEST

A pulling force of 500 newtons is applied for 10 seconds time to the upper and lower parts of the crutch.

None of its components must disassociate.
