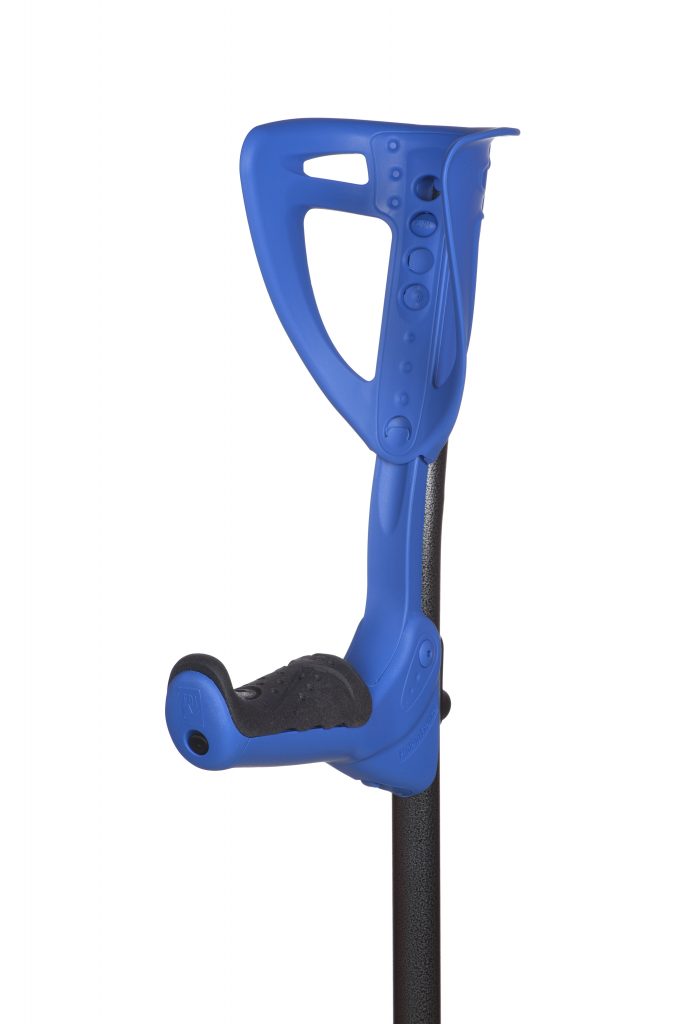

ERGOTECH

Ergotech fits first and foremost to the user, and not the other way round.

With an adjustable cuff height, it adapts to the user’s forearm morphology. Moreover, it adapts to the space given with its completely foldable handle.

ERGOTECH

To whom is it intended ?

The medium to long-term user needing to get around a lot and looking for a forearm crutch that is as discreet as possible for himself, first of all, and also for others.

Features:

• Ergonomic forearm crutches with height-adjustable cuff according to forearm morphology. (4 positions: 220 to 267 mm)

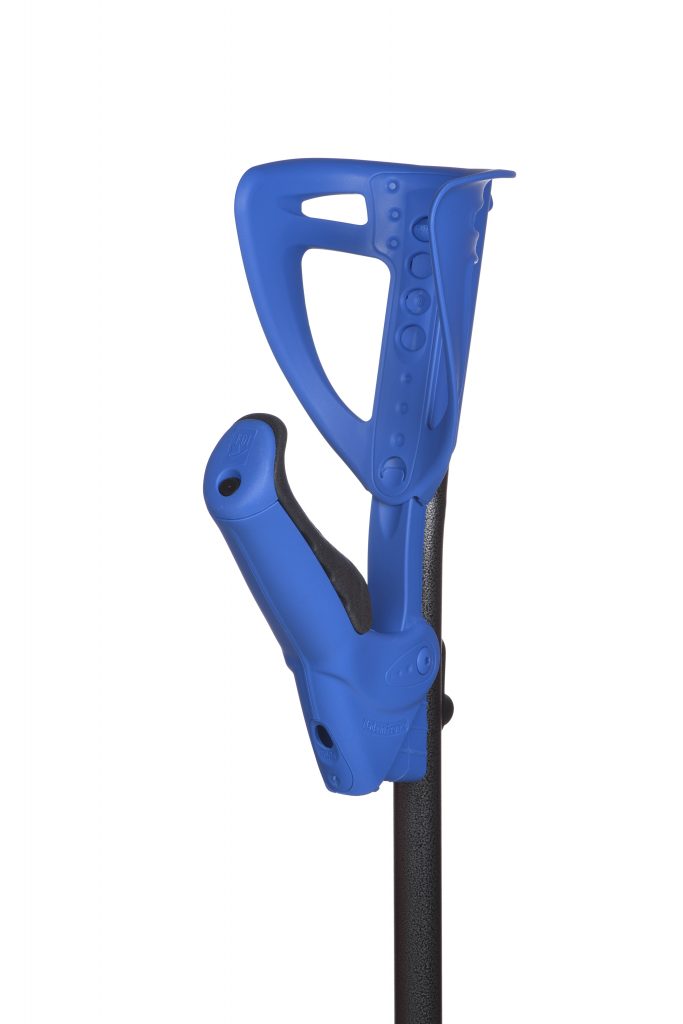

• Foldable handle
• Extra light and malleable: a featherweight 530 grams

Technical data

ERGOTECH

Color

Color"
Color"
Color"
Color"
Color"
Color"

Unitary weight

530 g

Maximum user weight

130 kg

Lean height

from 690mm to 990mm

Lean height adjustment

13 positions, 25mm apart

Tube

High-quality aluminium tube

Distance between hand-grip and cuff

from 220 mm to 267 mm

Handle

Cuff adjustment: 4 heights possible, from 200 to 275 mm Equipped with replaceable non-slip double layered OPTI COMFORT soft handle Replaceable, shock-absorbing, anti-slip base

Handle"
Handle
Handle
Handle
Handle
Handle
Handle

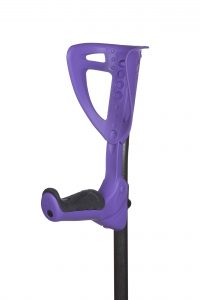

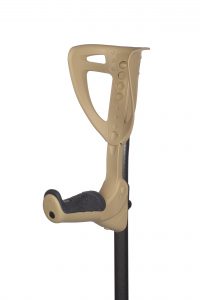

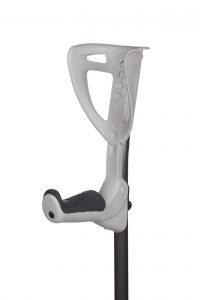

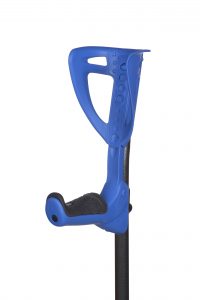

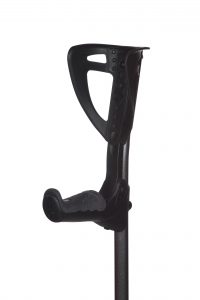

Several choices of colours available for our distribution partners. Customisation possible* *

**Customisation subject to minimum orders per colour and per model



Instructions for use:

We can provide several types of instruction manuals from the simplest to the most sophisticated. Prices and models on request or possible customisation by quote.
Prices and models available on demand, customization available on quotation.

Quality

OUR APPROACH

We submit our products to the CERAH (Centre d’Etudes et de Recherche sur l’Appareillage des Handicapés), accredited COFRAC (Comité Français d’Accréditation) to undergo a complete set of tests to guarantee the quality and safety of our products .

Following these experiments, none of the components used exhibit any permanent deformation or breakage.

Each model is the subject of a patent lodged at the INPI and are in full compliance with EN ISO 11334-1.

01. FATIGUE TEST

A loading force of 130 kg corresponding to the max user weight is applied one million times via a dummy arm to the fully-extended crutch.

02. LOW TEMPERATURE FALLING TEST

FDI elbow crutch is placed for 24 hours at -25 °C in the aim of weakening the structure.

Within 30 seconds of being removed from the cold environment, the elbow crutch undergoes a series of falls which must not reveal any cracks or fractures.

03. STATIC LOADING TEST

Our elbow crutches must withstand 130 kg of static load without weakening. To be validated, a loading force is applied via a dummy arm to the fully extended crutch and methodically reproduces a rise in weight to 1300 newtons for 10 seconds.

04. SEPERATION TEST

A pulling force of 500 newtons is applied for 10 seconds time to the upper and lower parts of the crutch.

None of its components must disassociate.
